We offer on behalf of our partner:
brand new line to produce French fries
capacity: 1,000kg/h finished product
EXCLUSIONS
To be purchased locally or recommended for direct purchase from reputed suppliers, as per our requirements
1. Potato Grader.
2. French Fry cutter
3. Grader for finished product.
4. IQF Freezer.
5. Packaging machine for frozen products
6. Cold store (-20ºC) for storage for packed frozen French Fries.
7. Refrigeration plant for Freezer, Cold Store, chilled water supply etc.
8. Steam Boiler, Air compressor, Weighbridge, Thermic Fluid Heater Heat Exchanger, etc.
9. Air, Water, Steam, Thermic Fluid Pipe line to & between the equipments.
10. Staircases, platforms, Railings etc.
11. All electrical cabling and wiring to and between the control panel and equipments.
12. Water treatment, effluent treatment and wastage collection and disposal system.
13. Complete civil and foundation work
14. Labor and material handling equipment for unloading, marshalling and positioning
of equipments.
15. Laboratory equipments
16. Potato Storage, Edible oil storage, Fuel storage facilities etc.
17. All approvals and sanctions from local authorities.
18. Anything not specifically mentioned in the proposal.

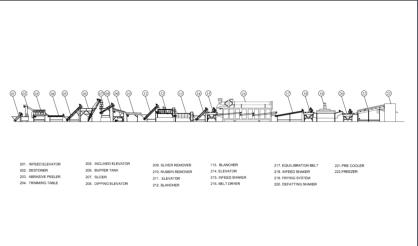

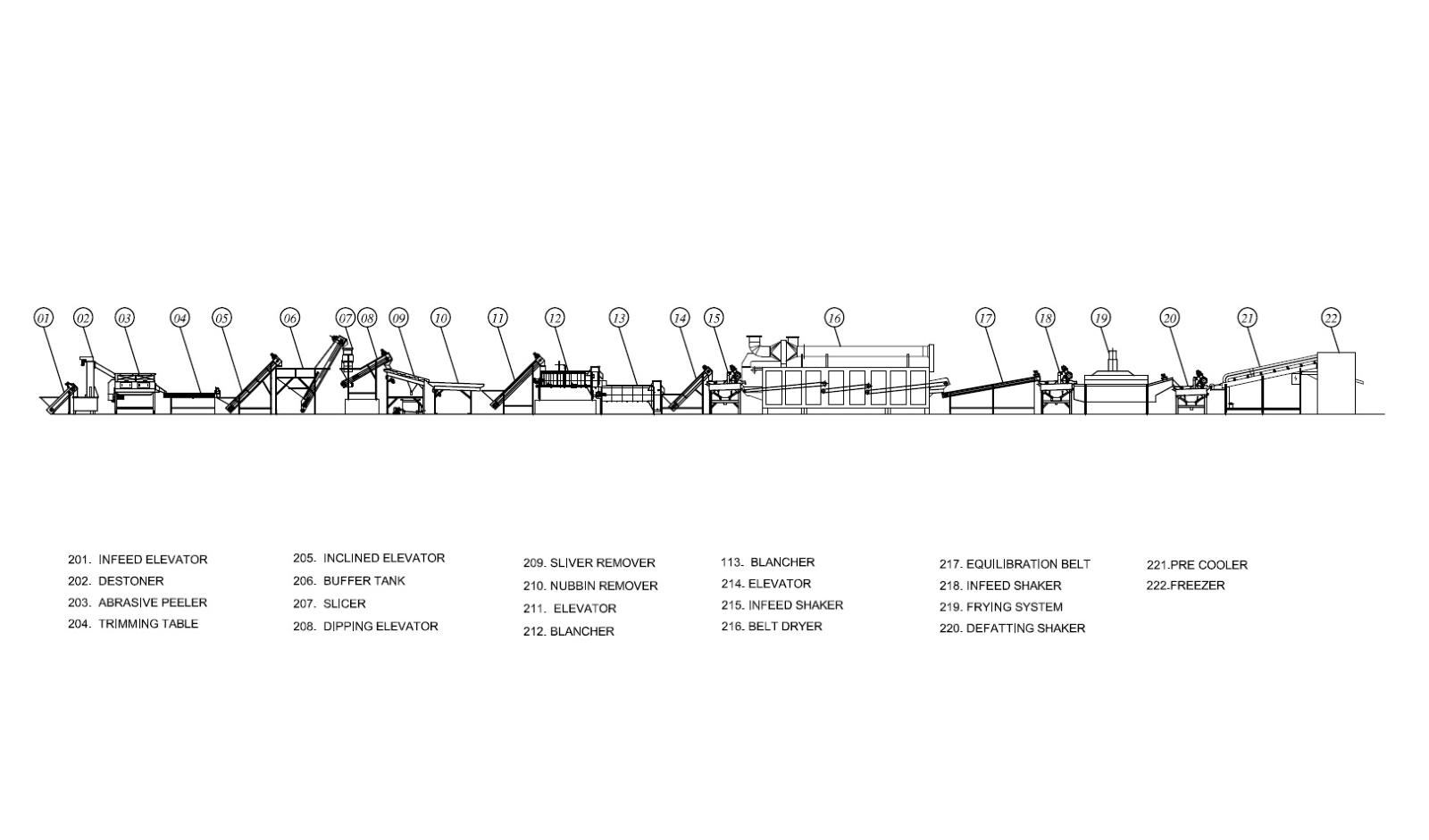

equipment list
1. INFEED ELEVATOR
2. DESTONER
3. ABRASSIVE PEELER
4. ROLLER INSPECTION TABLE
5. BUFFER TANK WITH ELEVATOR
6. FRENCH FRY CUTTER
7. DEWATERING SHAKER
8. SLIVER REMOVER
9. NUBBIN REMOVER
10. INSPECTION CONVEYOR
11. ELEVATOR
12. BLANCHER - 1
13. BLANCHER - 2
14. DIPPING ELEVATOR
15. INFEED SHAKER
16. BELT DRYER
17. EQUILIBRATION BELT
18. INFEED SHAKER
19. MULTI-FLOW FRYING SYSTEM
Comprising:-
a) Continuous fryer
b) Circulating pump unit
c) Continuous Fat Filter
d) Day tank with level control
e) Automatic Temperature Controller
f) Mechanical Hood Lifting
g) CIP(Cleaning in place system)
20. DEFATTING SHAKER
21. AMBIENT COOLING BELT
22. FREEZER FEED ELEVATOR
23. CONTROL PANEL
inquiry
